InteliVision 5.2
Category: Remote displays
Product Code : RD2IV5BXBAA
Order code: RD2IV5BXBAA

20 April 2022

View 528 View

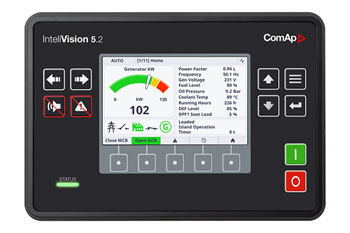

InteliVision 5.2

5" Colour Display Unit
Order code: RD2IV5BXBAA



 Feature

InteliVision 5.2 is a 5" remote colour display for ComAp controllers, designed as an easy-to-use Plug & Play display for monitoring and control of single gen-set in various applications.

  • 5" colour screen with resolution of 800 × 480 pixels
  • Plug & Play operation (auto configuration based on the controller application)
  • Easy screen customization using Screen Editor (part of InteliConfig)
  • 5 configurable user buttons under the screen
  • Modern look and graphical user interface
  • Supported controllers :
  • Fast and intuitive navigation
  • Multi-language support
  • Trends monitoring screen (up to 4 channels)
  • Communication with controller via Ethernet
  • Operating temperature: -30 °C to +70 °C (-40 °C to +70 °C if the device is powered on above -30 °C).
  • Front face is sealed to IP65
  • 1x Analog Input, 1x Binary Output
  • Easy-to-use mounting system
  • Same cut out as InteliGen 500
  • EMC, climatic and mechanical tests
  • CE and UL certification
