InteliGen4 200
Product Code : IG4200XXBAA, IG4200XXBLA
Order code: IG4200XXBAA, IG4200XXBLA

15 February 2023

View 673 View

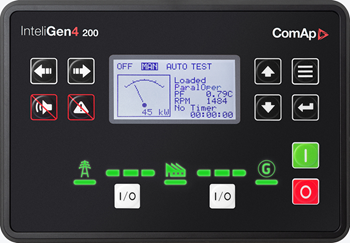

InteliGen4 200 is a diesel gen-set control unit for common paralleling applications supporting both single and multiple gen-sets running in grid-tied or island operations.
This product is the new generation of our InteliGen 200 controller.
  • Cybersecurity by design
  • Plug-in modules
  • Stage V & Tier 4 Final
  • Dynamic spinning reserve
  • User defined protections and setpoints


 Feature

The InteliGen4 200 offers:

  • Support for installations with the option for cooperation with up to 32 gen-sets/mains/tie controllers
  • Keeping your business and data as safe as possible, meeting the ISA 62443 level 2 - level 3 security requirements
  • AirGate 2.0 for easy connection to your equipment remotely, without worrying about your asset’s IP address
  • Dynamic spinning reserve helping to deliver maximum amount of available energy from photovoltaics
  • StageV and Tier4Final-ready by default
  • Multi ECU (Electronic Control Unit) enabling communication with more independent J1939 devices such as Engine Control Units, AVR modules, Breakers, etc.
  • Built-in PLC interpreter with the use of ComAp's free PLC editor
  • User-defined protections and setpoints on top of default parameters
  • Remote control and monitoring of your gen-set operations with WebSupervisor, our cloud-based fleet management tool
  • Secure user management
  • Compatible load/Var sharing and power management with other ComAp solutions
  • DROOP regulation allowing load and Var sharing when the inter-controller’s communication is lost
  • Plug-in modules to easily extend the functionality of the controller
  • Possibility to have a mains application in a gen-set controller
  • One hardware for more applications, enabling an easy switch between MINT and SPtM application
  • Optional geofencing feature helping with efficient unit tracking and theft prevention*
  • Event-based history for fast and easy troubleshooting
  • Increased site efficiency and reduced operational costs through effective power management
  • Automatic Mains Failure that ensures automatic start of gen-sets and minimises downtime
  • Peak shaving for limiting the import from the mains (e.g., due to higher prices)
  • Load shedding ensuring the most important loads are running even when there is a lack of power

* Feature available with a CM2-4G-GPS plug-in card.
