ATS 115
Product Code : ATS 115
Oder code : ATS 115

21 July 2020

View 565 View

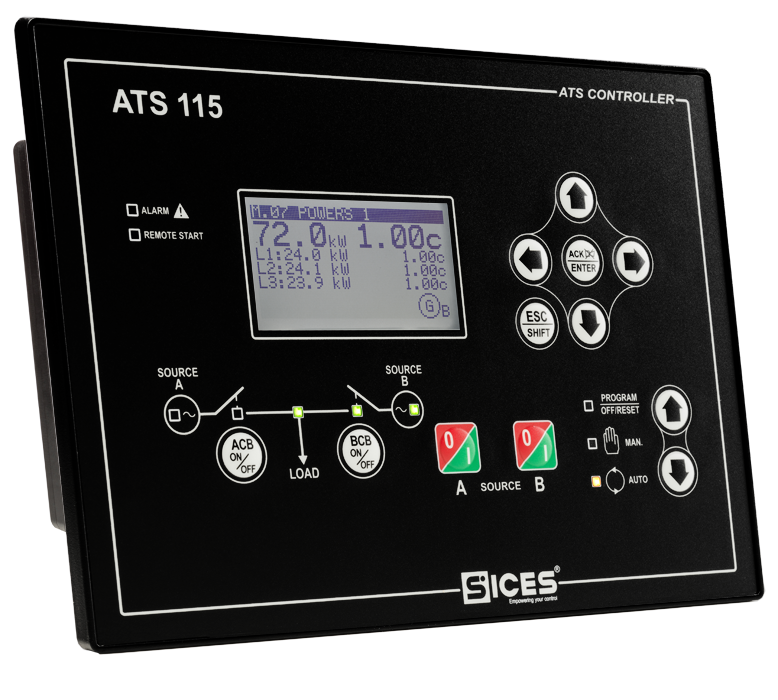

ATS 115

Micro-processed controller able to manage the automatic
switch between two supply sources, both mains and genset(s)





 Features

  • True RMS measure for voltages of both sources, currents on loads.
  • Measure of active power and power factor.
  • Measure of frequency for both sources, powers on load.
  • 8 programmable digital inputs (insulated).
  • 8 programmable digital outputs.
  • USB Port and ETHERNET Port (for ATS115Plus).
  • Graphic display with single-line diagram representation.
  • Real time clock.
  • Events and data recording.
  • Remote switch commands and remote start and stop commands.
  • Embedded alarm horn.
