GC 250
Product Code : GC 250
Oder code : GC 250 COMPACT AMF CONTROLLERS

21 July 2020

View 693 View

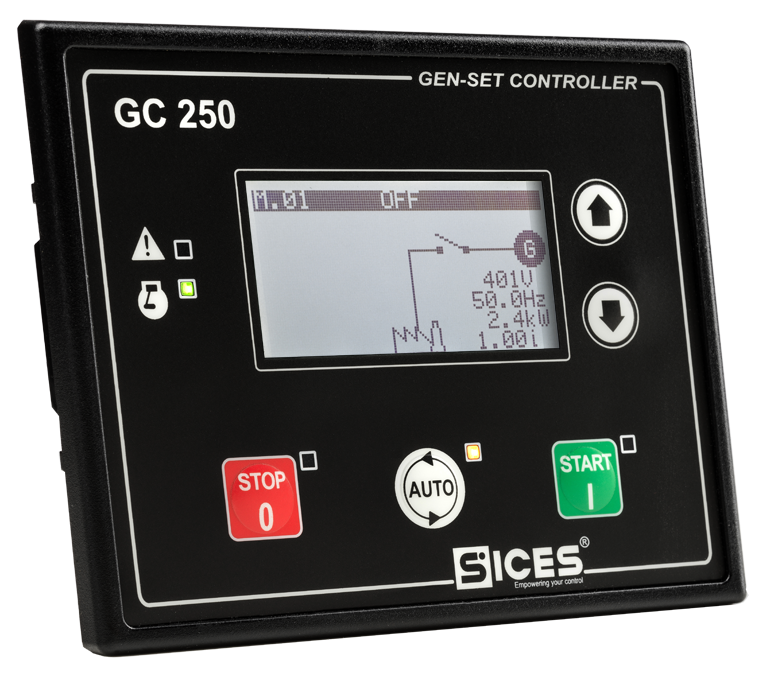

GC 250
Compact Auto Start and Automatic Mains Failure controller for single genset





        Features

  • AUTO-START and AMF (Automatic Mains Failure) controller for single gensets.
  • Large LCD display with LED backlight and icons.
  • Compact dimensions.
  • 3 Phases mains (utility) sensing.
  • 3 Phases generator sensing.
  • 3 x CTs inputs.
  • True RMS measurements: kW, kVA, kVAr, pf, kWh (phase & total).
  • 4 Configurable digital inputs.
  • 3 Configurable analogue inputs + 1 (shared with a digital input) + 1 for D+.
  • Interface for traditional and J1939 engines.
  • USB serial port for configuration and FW update.
  • Data recording: 64 Events log, 64 (slow) + 42 (fast) periodical recordings.
  • Remote start and stop.
  • Embedded horn alarm.
  • Real Time Clock with internal rechargeable Lithium battery.
  • Periodical test.
  • Free configuration software BoardPRG3.
