IM3210XXBAA
Product Code : IM3210XXBAA

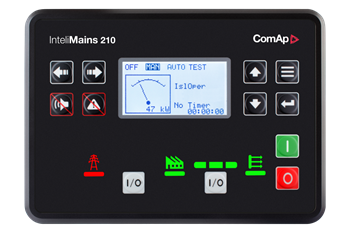

InteliMains 210

24 February 2023

View 1420 View

InteliMains 210 is a secure mains supervision controller for synchronising sets of gen-sets to the mains/utility source. The controller can also be used for tie-breaker operation and is compatible for switchgear and standard applications.
  • Built-in PLC interpreter
  • Compatibility across the portfolio
  • Remote connection and monitoring
  • Plug-in modules
  • One hardware for more applications

 Feature

The InteliMains 210 offers:

  • Support for installations with the option for cooperation with up to 32 gen-sets/mains/tie controllers
  • Built-in PLC interpreter with the use of ComAp's free PLC Editor for easy configuration
  • AirGate to connect to your equipment remotely, without worrying about your asset’s IP address
  • Remote control and monitoring of your gen-set operations with WebSupervisor, our cloud-based fleet management tool
  • Compatible load/Var sharing and power management with other ComAp solutions
  • A wide range of plug-in modules allowing you to easily extend the functionality of the controller
  • One hardware for more applications, enabling an easy switch between MCB, MGCB and BTB applications
  • Event-based history for fast and easy troubleshooting
  • Peak shaving for limiting the import from the mains (e.g. due to higher prices)
  • Load shedding ensuring the most important loads are running even when there is a lack of power
