Category: Remote displays
Product Code : RD112OEMBZH
Order code: RD112OEMBZH
25 January 2019
View 1281 View

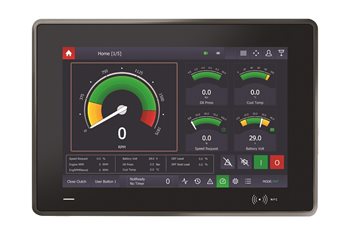

InteliVision 12Touch OEM
Marine Approved 12,1" Colour Display Unit without name and company logo on its front face
Order code: RD112OEMBZH
.jpg)
InteliVision 12Touch, industrial operator panel equipped with 12,1” colour, multi-touch screen, is dedicated together with the main ComAp controller to visualise and control single gen-set in various applications.
Panel title
- 12,1" colour, multi-touch screen, TFT display unit with resolution of 1280 x 800 pixels
- Touch based Graphical User Interface, support for multi-touch gestures
- Plug and Play operation (auto configuration based on controller application)
- Supported controllers :
- Complete access to all control and monitoring functions
- Fast and intuitive navigation
- Extended trends monitoring screen
- USB flash disk file storage (export/import trends, history, archive of controller and InteliVision 12Touch firmware and others to USB stick)
- User’s pictures import
- Apaptive alarm list
- Large History screen
- Adjustable setpoints help
- Multilanguage support
- Communication connection via RS-485 or CAN
- Integrated easy to use mounting system
- Designed to be mounted in both monitoring and engine room
- Industrial and robust design
- Rugged housing manufactured from a single piece of aluminium alloy
- Chemically strengthened front glass (8 times as strong as normal glass)
- Sun-readable display (1000 cd/m2)
- Automatic brightness control
- Operating temperature: –30 to + 70°C
- Face is sealed to IP65
- EMC, climatic and mechanical tests
- CE, UL and cUL certification
- Marine certifications
Special website dedicated to InteliVision Touch displays: http://www.intelivisiontouch.com/.
Available from March 2018.
IMPORTANT COMPATIBILTY NOTICE :
It is recommended to upgrade both display unit and controller firmware to the newest version in order to fully utilize features of ScreenEditor within GenConfig. For more information please see the New Feature List.
