InteliVision 17Touch
Category: Remote displays
Product Code : IV17T2
Order code: IV17T2

25 June 2018

View 1379 View

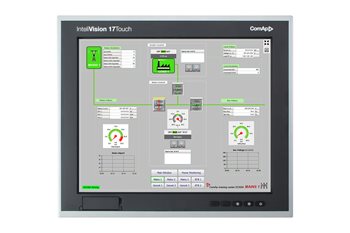

InteliVision 17Touch

17“ Touchscreen Display Unit
Order code: IV17T2



The new InteliVision 17Touch is 17“ Touchscreen display unitdesigned for complete monitoring and control of multiple controllers or cogeneration installation.

HARDWARE FEATURES

 Features

  • 17" touch SXGA (1280x1024) TFT LCD Display with LED backlight
  • Intel Celeron 827E Processor, Fanless Cooling System
  • IP-65 NEMA 4 Aluminium Die Cast Front Bezel
  • Two easy access front USB ports
  • Over and under voltage protection
  • Polarity protection
  • Extended temperature range from -20 up to 60°
  • UL certified

SOFTWARE FEATURES

  • InteliMonitor / IGS-LOG (included for free)
  • Multiple controllers monitoring
  • Mode change feature for any connected controller
  • Start/Stop any connected gen-set manually
  • Control/Monitor of all GCBs / MCBs controlled by ComAp units
  • Setpoints configurable from one device
  • History logs of all controllers
  • Fullscreen mode with lock protection / PIN
  • Onscreen keyboard
