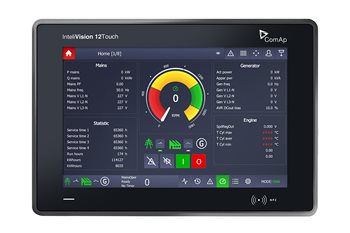

• 12,1" colour, multi-touch screen, TFT display unit with resolution of 1280 x 800 pixels
• Touch based Graphical User Interface, support for multi-touch gestures
• Plug and Play operation (auto configuration based on controller application)
• Supported controllers :
  • InteliSys GAS
  • InteliGen NT BaseBox
  • InteliGen NTC BaseBox
  • InteliSys NTC BaseBox
  • InteliMains NTC BaseBox
  • InteliSys NTC Hybrid
• Complete access to all control and monitoring functions
• Fast and intuitive navigation
• Extended trends monitoring screen
• USB flash disk file storage (export/import trends, history, archive of controller and InteliVision 12Touch firmware and others to USB stick)
• User’s pictures import
• Apaptive alarm list
• Large History screen
• Adjustable setpoints help
• Multilanguage support
• Communication connection via RS-485
• Integrated easy to use mounting system
• Designed to be mounted in both monitoring and engine room
• Industrial and robust design
• Rugged housing manufactured from a single piece of aluminium alloy
• Chemically strengthened front glass (8 times as strong as normal glass)
• Sun-readable display (1000 cd/m2)
• Automatic brightness control
• Operating temperature: –30 to + 70°C
• Face is sealed to IP65
• EMC, climatic and mechanical tests
• CE, UL and cUL certification
• ABS Marine certification - marine approved products.

IMPORTANT COMPATIBILTY NOTICE :

It is recommended to upgrade both display unit and controller firmware to the newest version in order to fully utilize features of ScreenEditor within GenConfig. For more information please see the New Feature List.
