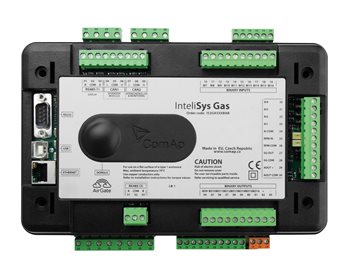

Control any gas and/or CHP engine with power range from tens of kW up to MW using ComAp’s InteliSys Gas controller. The controller enables you to design your own functions and layout, provides secure on-site and remote monitoring, has broad communication capabilities and can interface with various gas engine components, such as mixers, ignition units, and detonation detection units.

The InteliSys Gas offers:

• Preprogrammed functions typical for gas engines and generator-specific functions, enabling fast and easy configuration and commissioning
• Support for CHP functionalities through preprogrammed and ready-to-use functions such as derating, and power control by temperature request
• Built-in Air Fuel Ratio control algorithm for two gases or two independent mixers
• Centralised Gas engine management system helping you maximise the unit’s running time, simplify commissioning and troubleshooting
• Event-based and  history for fast and easy troubleshooting
• Dynamic spinning reserve  helping to deliver maximum amount of available energy from photovoltaics
• Support for complex installations with the option for cooperation with up to 32 additonal gen-sets/mains/tie controllers
• Large built-in PLC interpreter
• User-defined protections and setpoints on top of default protection
• Remote control and monitoring of your gen-set operations with WebSupervisor, our cloud-based fleet management tool, and AirGate
• A wide range of plug & play displays with free Screen Editor for designing top level SCADAs
• More precise measuring with a True Root Mean Square measurement feature
• Built-in emergency stop mechanism for shutting off your machines in unexpected cases
• Compatible load/Var sharing and power management with other ComAp solutions, such as ComAp’s microgrid controllers
• Start-up synchronisation to minimise the paralleling start sequence time and get the gen-set system up and running with the minimum possible delay
• Faster and cost-effective operations with signal sharing over a CAN bus across a group of control units
• Optional geofencing helping with efficient unit tracking and theft prevention
• Automatic Mains Failure that ensures automatic start of gen-sets and minimises downtime
• Peak shaving for limiting the import from the mains (e.g. due to higher prices)
• Load shedding ensuring the most important loads are running even when there is a lack of power
• Controller redundancy minimising solution downtime and ensuring the power isn’t compromised
• StageV and Tier4Final-ready by default
• Broad communication capabilities: USB, RS232 - RS485, Ethernet; Modbus RTU & TCP, SNMP, Internet; cellular internet connection via InternetBridge-NT module; SMS and e-mail notifications
