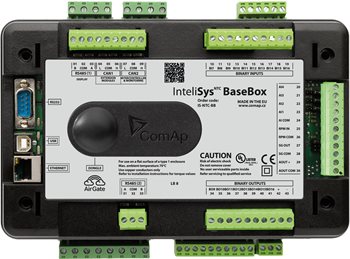

InteliSys NTC BaseBox is a controller with a broad range of communication and PLC capabilities for single or multiple gen-sets operating in stand-by or parallel mode. Intended primarily for CHP and switchgear applications, it will help you with secure on-site and remote monitoring of various installations such micro CHP, datacentres, hospitals or banks. This controller also has a certified version for marine applications. Learn more: InteliSys NTC BaseBox GeCon Marine

• Built-in PLC interpreter
• Editable plug & play displays
• Remote connection & monitoring
• Controller redundancy
• User defined protections and setpoints
• True RMS measurement
• Broad communication capabilities

   Feature

  Control your complex installations safely and easily with our InteliSys NTC Basebox controller, ensuring greater safety, easy communication, and minimal downtime.

  The InteliSys NTC Basebox offers:


  • AirGate for easy connection to your equipment remotely, without worrying about your asset’s IP address
  • Built-in PLC interpreter helping with the use of ComAp's free PLC Editor
  • User-defined protections and setpoints on top of default protection
  • Controller redundancy minimising solution downtime and ensuring the power isn’t compromised
  • More precise measuring with a True Root Mean Square measurement feature
  • Remote control and monitoring of your gen-set operations with WebSupervisor, our cloud-based fleet management tool
  • Compatible load/Var sharing and power management with other ComAp solutions
  • DROOP regulation allowing load and Var sharing when the inter-controller’s communication is lost
  • Start-up synchronisation to minimise the paralleling start sequence time and get the gen-set system up and running with minimum possible delay
  • Dynamic spinning reserve preventing supply drops in hybrid installations with PVs
  • Faster and cost-effective operations with signal sharing over a CAN bus across a group of control units
  • Possibility to have a mains application in a gen-set controller with firmware upload functions
  • Event-based history for fast and easy troubleshooting
  • Automatic Mains Failure that ensures automatic start of gen-sets and minimises downtime
  • Peak shaving for limiting the import from the mains (e.g. due to higher prices)
  • Load shedding ensuring the most important loads are running even when there is a lack of power
  • Compatible with the following remote displays:
    • InteliVision 5
    • InteliVision 8
    • InteliVision 12Touch

   * Feature available with a software key.
