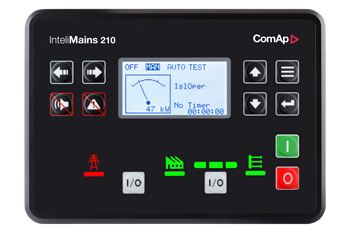

InteliMains 210

New Generation of Mains Supervision Controller
Order code: IM3200XXBAA




Feature

InteliMains power in a "compact" package

  • Synchronising - for multiple up to 31 gen-sets operating in parallel to mains
  • PLC - Utilise our unique, and easy to use PLC drag-and-drop blocks for configuration.
  • New design - Flexibility to change the application e.g. MCB & MGCB.
  • Plug-in modules - Customize your controller with our plug-in extension and communication modules.
  • 4G/LTE - Connect to your gen-set via 4G/LTE for alerts or use ComAp's WebSupervisor.
  • GPS - Always know the location of your gen-set using geofencing for theft or movement alerts.
  • InteliConfig - Our new configuration and monitoring PC tool will offer you multi gen-set control and monitoring as well as easy set-up.

​InteliMains 210 as a complementary product to InteliGen 200 is further offering:

  • Two types of synchronisations: Phase Match or Slip Synchro
  • Total remote monitoring and control
    • InteliConfig for configuration and monitoring
    • WinScope for precise tuning of PID regulators exactly according to gen-set type and application needs
    • WebSupervisor for cloud based monitoring and control of your whole gen-set fleet
  • Wide range of communication and connection capabilities including:
    • USB, CAN and RS485 on board
    • USB master for configuration or firmware upload or download
    • RS232 and additional RS485 via plug-in module
    • internet access using Ethernet, GPRS/3G/4G via plug-in modules
    • configurable Modbus RTU or TCP and support of SNMP protocols v1 or v2c
  • Internal PLC support with PLC editor and monitor included in InteliConfig
  • Active SMS and emails in different languages
  • Geofencing and tracking via WebSupervisor
  • Option for additional inputs/outputs
  • Flexible event based history with up to 350 events
  • Multipurpose flexible timers
  • UL listed certification
