InteliDrive Marine
Category: Engine controllers
Product Code : ID2C2004BAA
Order code: ID2C2004BAA

11 January 2019

View 682 View

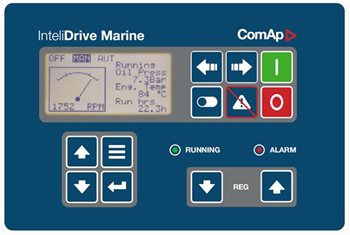

InteliDrive Marine

Engine controller for Marine Applications
Order code: ID2C2004BAA


 Features

  • Engine controller for marine Tier4 Final propulsion applications
  • Control, monitoring and protection for any type of marine engine
  • Support of EFI (ECU) engines via CAN/J1939 or Cummins Modbus
  • Redundant architecture by using backup redundant protection unit Inteli RPU
  • Support of two independent power supplies via I-RPU module
  • 7 configurable binary inputs, 7 configurable binary outputs
  • 9 configurable analogue inputs (3 resistive, 3 current 0-20mA, 3 voltage 0-10V)
  • Option for additional inputs/outputs
  • Selectable protections warning/cooling down/shutdown
  • 3 level of controller setting / operation password protection
  • Ethernet, USB, GSM / GPRS, RS485 or RS232 / Modem / Modbus communication
  • Automatic SMS on alarm
  • On-line control and monitoring over web pages (embedded web server)
  • Real time clock and event history log
  • Toggle button with additional features adjustments
  • Up/Down speed regulation buttons on the front facia
  • 2 languages (user changeable), Chinese language support
  • Front panel sealed to IP65
