InteliSys NTC BaseBox GeCon
Product Code : IS-NTC-BB
Order code: IS-NTC-BB

22 June 2018

View 763 View

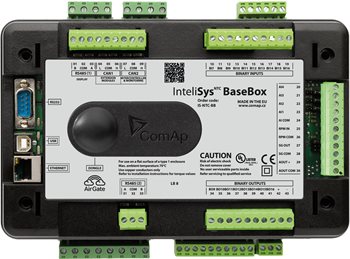

InteliSys NTC BaseBox GeCon

Premium and Cogeneration (CHP) Generator Controller

Order code: IS-NTC-BB







 Features

  • Premium generator controller for both single and multiple gensets operating in standby or parallel modes
  • Support of cogeneration (CHP) and other complex applications
  • To be used in conjunction with detachable colour displays InteliVision 8 or InteliVision 5
  • Complete integrated generator solution and signal sharing via CAN bus – minimum external components needed
  • Many communication options – easy remote supervising and servicing
  • Generator performance log for easy problem tracing
  • Automatic synchronizing and control breaker
  • Baseload, Import / Export, TempByPower, Peak shaving, Voltage and PF control (AVR)
  • Generator measurement: U, I, Hz, kW, kVAr, kVA, PF, kWh, kVAhr
  • Mains measurement: U, I, Hz, kW, kVAr, PF
  • Selectable measurement ranges for AC voltages and currents – 120 / 277 V, 0–1 / 0–5 A
  • Inputs and outputs configurable for various customer needs
  • Bipolar binary output – possibility to use BO as High or Low side switch
  • 1× RS232 / 2× RS485 interface with Modbus protocol support; Analog / GSM / ISDN / CDMA modem communication support; SMS messages;  secondary RS485 converter is isolated
  • AirGate support
  • Ethernet connection (RJ45)
  • USB 2.0 slave interface
  • Event-based history (up to 4000 records) with customer-selectable list of stored values; RTC; statistic values
  • Post mortem history (50 records)
  • Integrated PLC programmable functions
  • Integrated fixed and configurable protections
  • Customized firmware solution

------------------------------------------------------------
Order instruction: To run the GeCon software you need to order InteliSys NTC BaseBox, and then install the correct GeCon software:

IGS-NT-LSM+PMS dongle is required for Loadsharing and PowerManagement.
