InteliGen NTC BaseBox 400Hz
Product Code : IG-NTC-BB 400Hz
Order code: IG-NTC-BB 400Hz

11 January 2019

View 1190 View

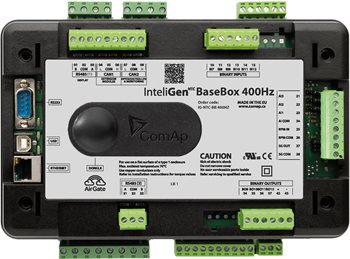

InteliGen NTC BaseBox 400Hz

Ground Power Unit (GPU)

Order code: IG-NTC-BB 400Hz











 Features

  • Comprehensive gen-set controller for land aircraft operating at 400 Hz frequency (GPU-Ground Power Units) To be used in conjunction with detachable colour displays InteliVision 5 or InteliVision 8
  • Island operation, based on standard MINT application
  • Synchronizing and power management functions
  • Support of engines with ECU (Electronic Control Unit)
  • Complete integrated gen-set solution and signal sharing via CAN bus – minimum external components needed
  • Many communication options – easy remote supervising and servicing
  • Gen-set performance log for easy problem tracing
  • Automatic synchronizing and power control (via speed governor or ECU)
  • AMF function, Baseload, Import / Export, Peak shaving, Voltage and PF control (AVR)
  • Generator measurement: U, I, Hz, kW, kVAr, kVA, PF, kWh, kVAhr
  • Mains measurement: U, I, Hz, kW, kVAr, PF
  • Selectable measurement ranges for AC voltages and currents – 120 / 277 V, 0–1 / 0–5 A
  • Inputs and outputs configurable for various customer needs
  • Bipolar binary outputs - possibility to use BO as High or Low side switch
  • 1× RS232 / 2× RS485 interface with Modbus protocol support; Analog / GSM / ISDN / CDMA modem communication support; SMS messages; ECU Modbus interface; secondary RS485 converter is isolated
  • AirGate support
  • Ethernet connection (RJ45)
  • USB 2.0 slave interface
  • Controller redundancy
  • Event-based history (up to 1000 records) with customer-selectable list of stored values; RTC; statistic values
  • Integrated PLC programmable functions
  • Integrated fixed and configurable protections
  • DIN-Rail mount
  • Customized firmware solution
