InteliGen NTC BaseBox
Product Code : IG-NTC-BB
Order code: IG-NTC-BB

22 June 2018

View 694 View

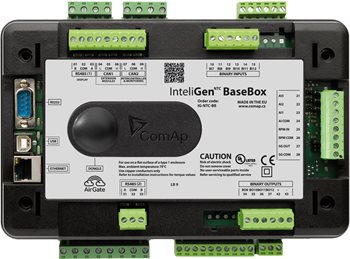

InteliGen NTC BaseBox

Complex Parallel Gen-set Controller with Detachable Colour Display

Order code: IG-NTC-BB







 Features

  • Gen-set controller for both single and multiple gensets operating in standby or paralleling modes.
  • To be used in conjunction with detachable colour displays InteliVision 5 or InteliVision 8
  • Support of engines with ECU (Electronic Control Unit)
  • Complete integrated gen-set solution and signal sharing via CAN bus – minimum external components needed
  • Many communication options - Ethernet connection (RJ45), USB 2.0 slave interface, 1× RS232 / 2× RS485 interface with Modbus protocol support; Analog / GSM / ISDN / CDMA modem communication support; SMS messages; ECU Modbus interface; isolated secondary RS485
  • AirGate support – easy remote supervising and servicing
  • Automatic synchronizing and power control (via speed governor or ECU)
  • AMF function, Baseload, Import / Export, Peak shaving, Voltage and PF control (AVR)
  • Generator measurement: U, I, Hz, kW, kVAr, kVA, PF, kWh, kVAhr
  • Mains measurement: U, I, Hz, kW, kVAr, PF
  • Selectable measurement ranges for AC voltages and currents – 120 / 277 V, 0–1 / 0–5 A
  • Inputs and outputs configurable for various customer needs
  • Bipolar binary outputs - possibility to use BO as High or Low side switch
  • Controller redundancy
  • Event-based history (up to 1000 records) with customer-selectable list of stored values; RTC; statistic values
  • Integrated PLC programmable functions
  • Integrated fixed and configurable protections
  • DIN-Rail mount
  • Customized firmware solution
