InteliLite AMF 25
Product Code : IL3AMF25BAA
Order code: IL3AMF25BAA

11 January 2019

View 1588 View

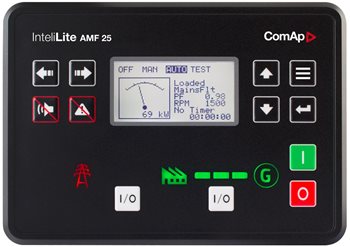

InteliLite AMF 25

New generation of the most advanced Auto Mains Failure (AMF) gen-set controller

Order code: IL3AMF25BAA



 InteliLite AMF 25  New generation of one of the world's most successful controllers in its class.

Advanced single gen-set controller for stand-by and prime power applications.



  • Direct communication with EFI engines
  • Total remote monitoring and control
  • Easy to install, configure and use
  • Wide range of communication capabilities including:
    • connection via RS232, RS485, CAN and on board USB
    • internet access using Ethernet, GPRS or 4G
    • support for Modbus and SNMP protocols
  • Internal PLC support with PLC editor and monitor included in LiteEdit
  • Cloud-based monitoring and control via WebSupervisor
  • Active SMS and emails in different languages
  • SNMP traps
  • Geofencing and tracking via WebSupervisor
  • 2 x 10 A binary outputs for cranking and fuel solenoid
  • Option for additional inputs/outputs
  • Flexible event based history with up to 350 events
  • Load shedding, dummy load capability
  • Tier 4 final support
  • Automatic temperature based cooling/heating
  • Comprehensive gen-set protections
  • Multipurpose flexible timers
  • True RMS measurement
  • Version for low temperatures also available
  • UL listed



Engine by
