MOT601 Series CD Ignition System MOT601 Series CD Ignition System MOT601 Series CD Ignition System MOT601 Series CD Ignition System MOT601 Series CD Ignition System
Category: Ignition
Product Code :
Price 0.00 ฿

31 May 2017

View 668 View

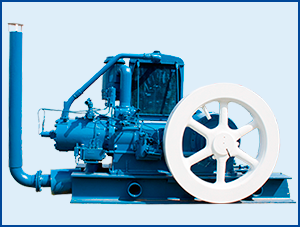

The self-powered MOT601 is a Capacitor Discharge (CD)
Ignition System for use on spark-ignited, single cylinder
engines with large flywheels. Engine mounted, very close to
the flywheel, the electronic components are supplied with
power by magnetic charging circuitry.

Features
• Applicable for single cylinder applications with
different flywheel sizes
• Self-powered electromagnetic system, no need
for external power
• High primary energy
• Using crankshaft reference timing
• High accuracy ignition timing
• 2 separate ignition timings (startup and nominal)
• Safety shutdown input
• Supplies panel power

Benefits
• Price effective system and parts
• Mainly maintenance-free system due to
non-moving parts that wear out
• All components available as spare parts and
interchangeable with competitor products
• 1 year warranty
• Available as complete system or single subcomponents.

Mode of Operation

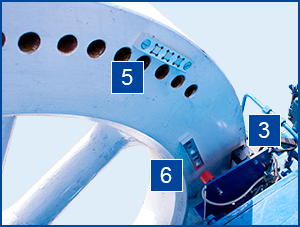

The charging bar (5) with three strong magnets attached
to the flywheel passes the charging generator module(3)
that is attached to the engine in a fixed position at every
revolution of the flywheel. At every revolution the generator
module charges a capacitor in the electronic ignition module(2)
as a result of the magnetic field.

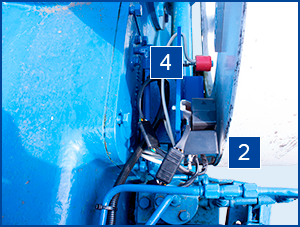

The trigger bar (6) with two magnets, which is likewise attached
to the flywheel, passes a pickup coil (4) that is attached to the
engine in a fixed position at every revolution of the engine.
When the trigger bar passes the pickup coil, the energy stored in

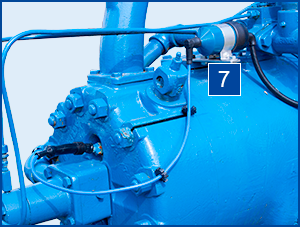

the capacitor is discharged into the attached ignition coil (7).

Ordering Information

P/N Figure Description Equivalent to

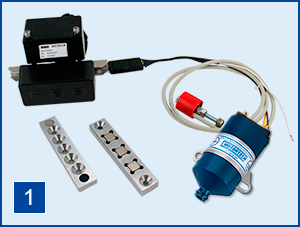

MOT601 (1) MOT601 ignition system AEI® FM601
ARROW® SFI-KIT
MURPHY® 72-70-0125

Ordering Information – Sub-Components

P/N Figure Description Equivalent to
M-400A-8814 (2) Electronic ignition module AEI® 400A-8814
ARROW® A400A-8814
MURPHY® 72-00-0024
M-260D-8810 (3) Charging generator AEI® 260D-8810
ARROW® A260D-8810
MURPHY® 72-00-0025
M-270A-8817 (4) Magnetic pickup harness AEI® 270A-8817
ARROW® A400A-8817
MURPHY® 72-00-0026
M-400A-8813 (5) Magnetic charging bar AEI® 400A-8813
ARROW® A400A-8813
MURPHY® 72-00-0027
M-400A-8811 (6)  Magnetic trigger bar AEI® 400A-8811
ARROW® A400A-8811
MURPHY® 72-00-0028
06.50.055 (7)  Ignition coil AEI® 1187
ARROW® 330-2-AI-46
MURPHY® 72-70-0235
