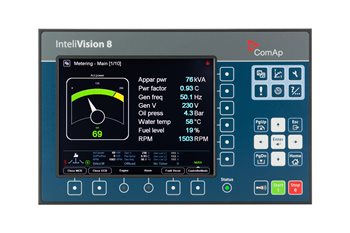

InteliVision 8
8" Colour Display Unit
Order code: INTELIVISION 8
InteliVision 8, industrial operator panel equipped with 8” colour screen, is dedicated together with the main ComAp controller to visualise and control single gen-set in various applications.
Features
- 8" colour TFT display with resolution of 800 x 600 px
- PLUG and PLAY operation (auto configuration based on controller application)
- Supported controllers :
- InteliGen NT BaseBox
- InteliGen NTC BaseBox
- InteliSys NTC BaseBox
- InteliMains NTC BaseBox
- InteliSys NTC Hybrid
- InteliDrive DCU
- InteliDrive DCU Marine
- InteliDrive Mobile
- InteliDrive Mobile Logger
- Complete access to all control and monitoring functionss
- More information in less time
- Fast and intuitive navigation
- TRENDS monitoring screen
- USB flash disk file storage (export/import trends, history, archive of controller and InteliVision 8 firmware to USB stick)
- Quick auto login with USB stick
- User’s picture import
- Easy Drag and Drop screen configuration in graphical editor
- ADAPTIVE and COLOUR alarm list
- Configurable soft keys buttons:
- Fast skip to any screen
- Binary signal activation – S/R button / toggle button / pulse generator
- Association to various Genset commands
- Large History screen
- Support of Tier 4 Final icons
- Communication connection via of RS232/485 and CAN bus
- Same cut profile as IS-Display (simple replacement of monochrome displays)
- Mounting screw available at the rear face of InteliVision 8 to mount a compatible controller
- Direct connection to the controller (converters are not needed)
- Designed to be mounted in both monitoring and engine room
- Windows CE operating system
- Operating temperature: –20 to + 70°C
- Face is sealed to IP65
- EMC, climatic and mechanical tests
- CE, UL, cUL certification
