InteliNanoNT AMF
Product Code : IN-NT AMF

22 June 2018

View 1663 View

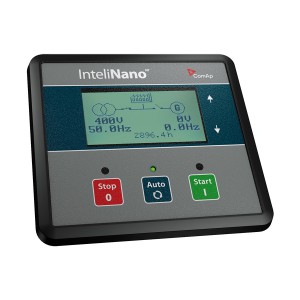

InteliNanoNT AMF

Auto Mains Failure (AMF) Gen-set Controller



 Features

  • Controller for single gen-set operating in standby applications
  • 3 Phase generator voltage measurement
  • 3 Phase mains voltage measurementConnection type and voltage auto detect
  • Various generator and engine protections
  • Biggest LCD screen in its class
  • Icon menu, no text
  • Automatic or manual MCB and GCB control
  • "Zero" power consumption mode
  • Battery voltage, Service time and Running hours indication
  • All setpoints and I/O's configurable via front panel
  • Ability to catch up on running engine (for manual engine start)
  • Light Tower mode supported
  • Event log (10 events)
  • Up to 3 analog inputs (shared with binary inputs)
  • COM terminal for analog measurement
  • Up to 6 binary inputs (1 binary input is shared with binary output)
  • 2 high side - high current outputs
  • 4 high side binary outputs
  • D+ pre-excitation terminal
  • ECU support (CAN J1939)
  • USB one-cord power supply and programing
  • License free PC configuration software (NanoEdit)
  • Standard cut-out dimension 96x96
  • Outside dimension 110x100
  • IP 65
  • UL recognized
